INA ZKLN1747-2RS-PE
Axial-Super Precision Bearings

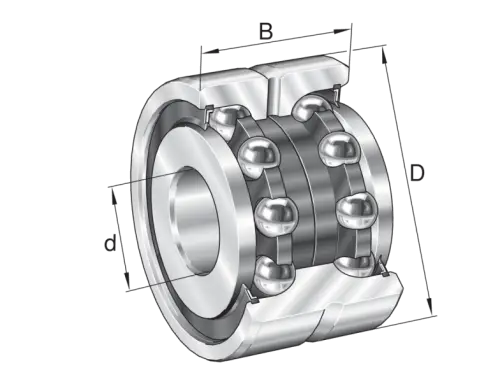

Axial angular contact ball bearings ZKLN..-2RS-PE, Increased tolerances, double direction, lip seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

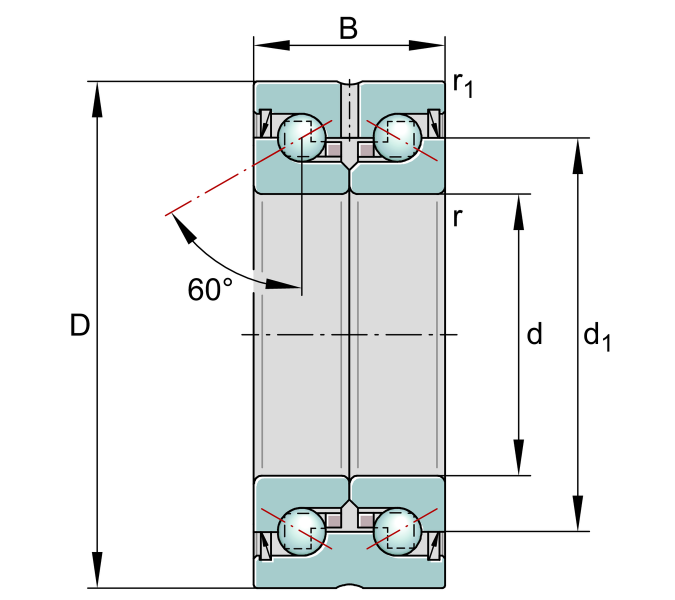

Main Dimensions & Performance Data
d
17 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.01 mm
Bore diameter lower tolerance
D
47 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.011 mm
Outside diameter lower tolerance
B
25 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
18,900 N
Basic dynamic load rating, axial
C0a
31,500 N
Basic static load rating, axial
Cua
1,440 N
Fatigue load limit, axial
nG Grease
7,600 1/min
Limiting speed for grease lubrication
nϑ
3,300 1/min
Thermally safe operating speed
MR
0.24 Nm
Bearing frictional torque
≈m
0.234 kg
Weight

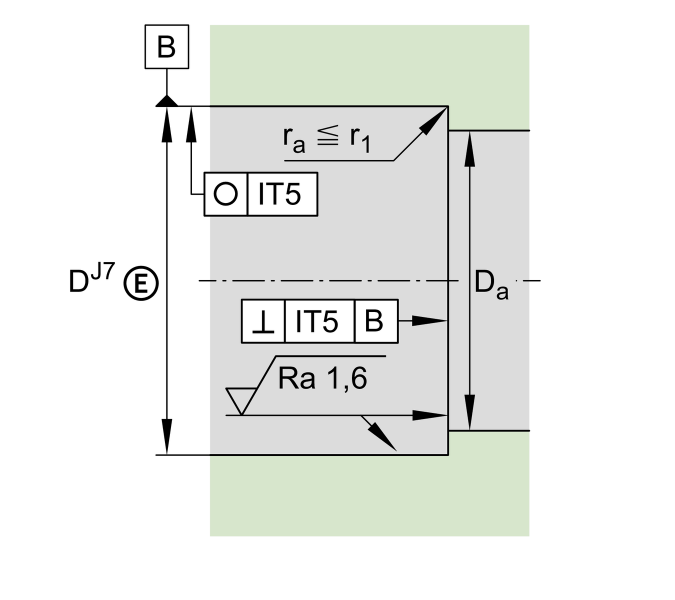

Mounting dimensions
da min
37 mm
Maximum diameter of housing
da min
23 mm
Minimum diameter shaft
