INA ZKLN4090-2RS-XL
Axial-Super Precision Bearings
Axial angular contact ball bearing ZKLN..-2RS-XL, double direction, no screw mounting
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

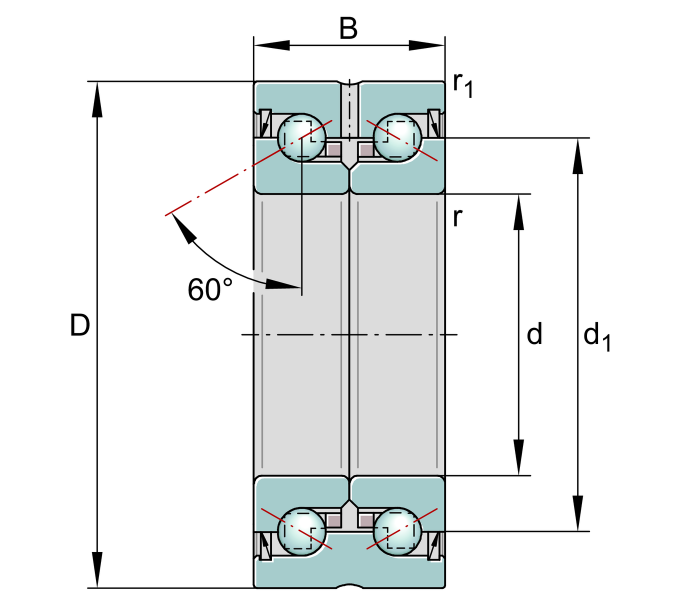

Main Dimensions & Performance Data
d
40 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
90 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
46 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
79,000 N
Basic dynamic load rating, axial
C0a
149,000 N
Basic static load rating, axial
Cua
9,100 N
Fatigue load limit, axial
nG Grease
3,500 1/min
Limiting speed for grease lubrication
nϑ
1,600 1/min
Thermally safe operating speed
MR
1.3 Nm
Bearing frictional torque
≈m
1.315 kg
Weight

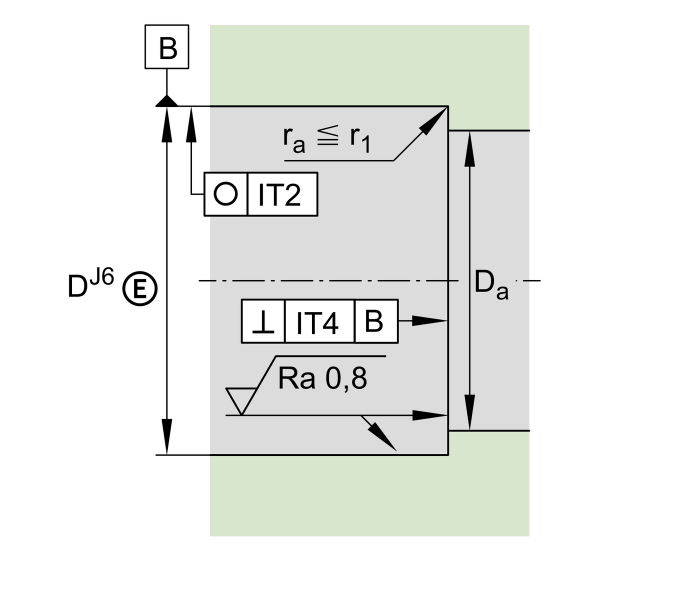

Mounting dimensions
da min
80 mm
Maximum diameter of housing
da min
56 mm
Minimum diameter shaft
