INA ZKLN50110-2Z-XL
Axial-Super Precision Bearings

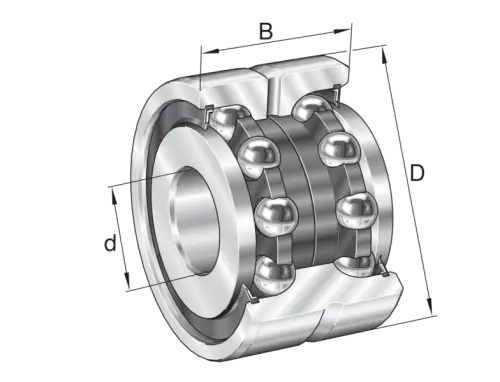

Axial angular contact ball bearings ZKLN..-2Z, double direction, gap seals on both sides
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

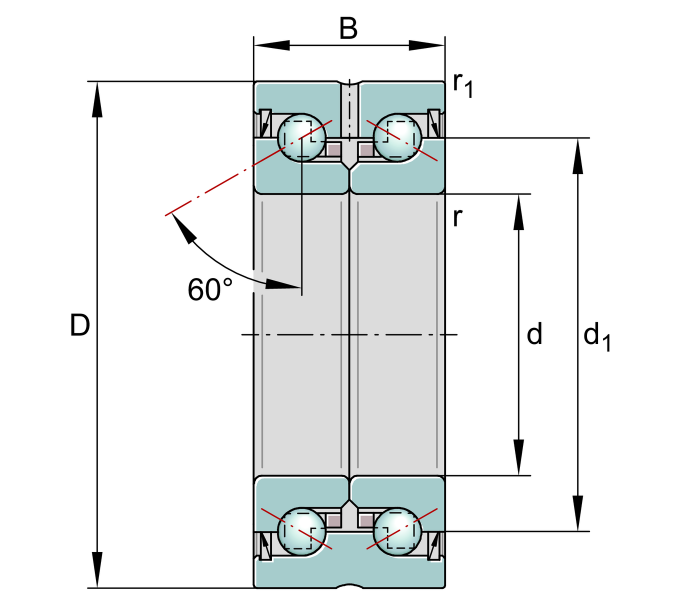

Main Dimensions & Performance Data
d
50 mm
Bore diameter
0 mm
Bore diameter upper tolerance
-0.005 mm
Bore diameter lower tolerance
D
110 mm
Outside diameter
0 mm
Outside diameter upper tolerance
-0.01 mm
Outside diameter lower tolerance
B
54 mm
Width
0 mm
Width upper tolerance
-0.25 mm
Width lower tolerance
Ca
125,000 N
Basic dynamic load rating, axial
C0a
250,000 N
Basic static load rating, axial
Cua
15,200 N
Fatigue load limit, axial
nG Grease
3,500 1/min
Limiting speed for grease lubrication
nϑ
2,500 1/min
Thermally safe operating speed
MR
1.3 Nm
Bearing frictional torque
≈m
2.421 kg
Weight

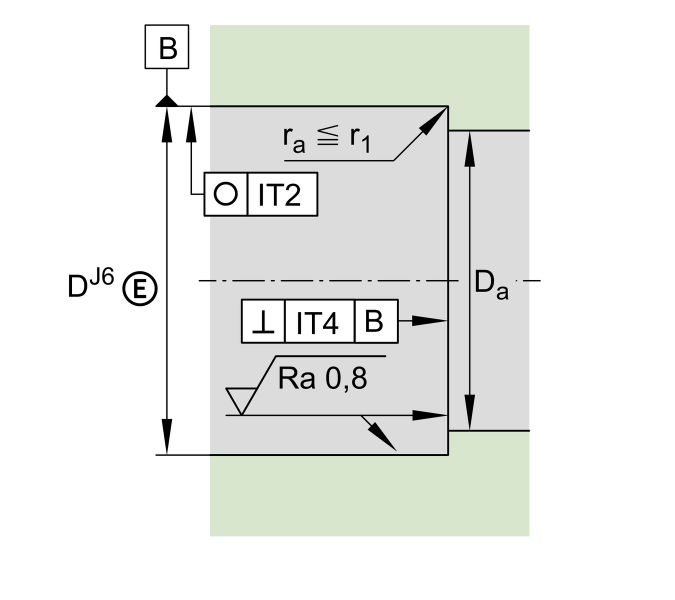

Mounting dimensions
da min
98 mm
Maximum diameter of housing
da min
63 mm
Minimum diameter shaft
