INA ZMA35/58
Precision Lock nut
Precision locknuts ZMA, locking pegs, radially arranged, heavy series
(BRAND)：INA
(Availability)：In Stock

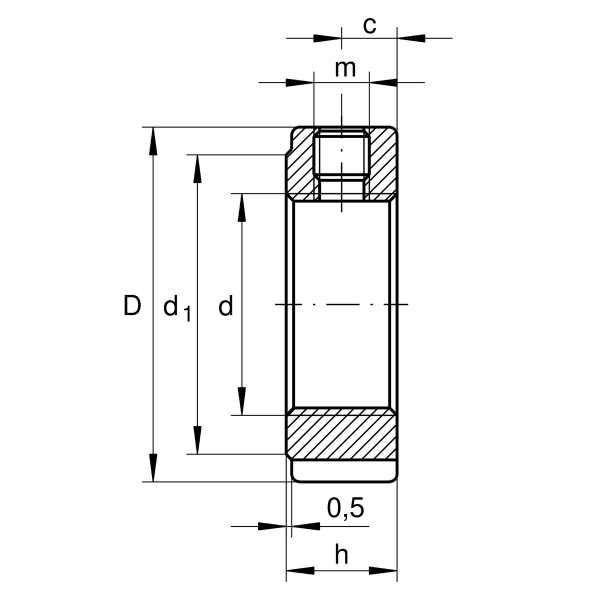

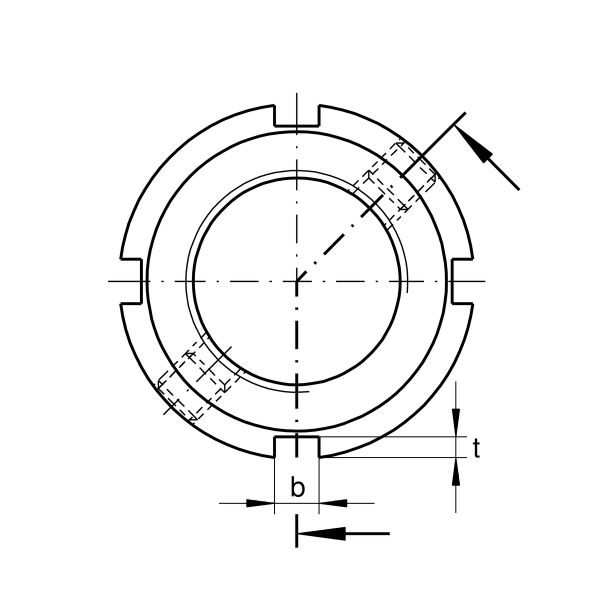

Main Dimensions & Performance Data
d
M35X1,5
Thread
D
58 mm
Outside diameter
h
22 mm
Height
MA
5 Nm
Mounting torque set screw
FaB
300,000 N
Breaking load, axial
ML
80 Nm
Breakawag
MAL
40 Nm
Mounting torque reference
MM
1.66 kg*cm2
Mass moment of inertia
≈m
0.277 kg
Weight
