Koyo 29396
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

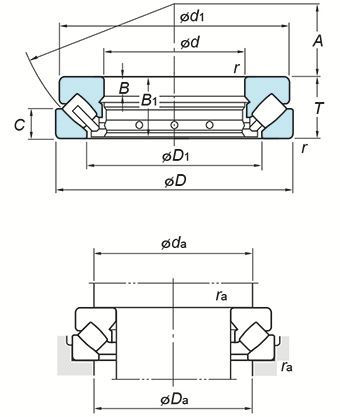

(Boundary dimensions ...etc)
d
480 mm
D
730 mm
T
150 mm
r(min.)
6 mm
Basic load ratings Ca
3650 kN
Basic load ratings C0a
15800 kN
Fatigue load limit : Cu
kN
Limiting speeds(Oil lub.)
390 min-1
d1
705 mm
D1
590 mm
B
51 mm
B1
144 mm
C
72 mm
A
270 mm
Mounting dimensions
da(min.)
595 mm
Da(max.)
650 mm
ra(max.)
5 mm
Refer.
(Refer.)Mass
218 kg
