Koyo 29484R
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

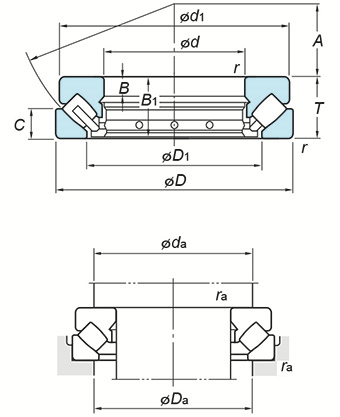

Specifications
(Boundary dimensions ...etc)
d
420 mm
D
730 mm
T
185 mm
r(min.)
7.5 mm
Basic load ratings Ca
7960 kN
Basic load ratings C0a
26500 kN
Fatigue load limit : Cu
1630 kN
Limiting speeds(Oil lub.)
370 min-1
d1
700 mm
D1
556 mm
B
67 mm
B1
178 mm
C
89 mm
A
244 mm
Mounting dimensions
da(min.)
560 mm
Da(max.)
630 mm
ra(max.)
6 mm
Refer.
(Refer.)Mass
330 kg
