Koyo 7313BDB
(BRAND)：KOYO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Specifications

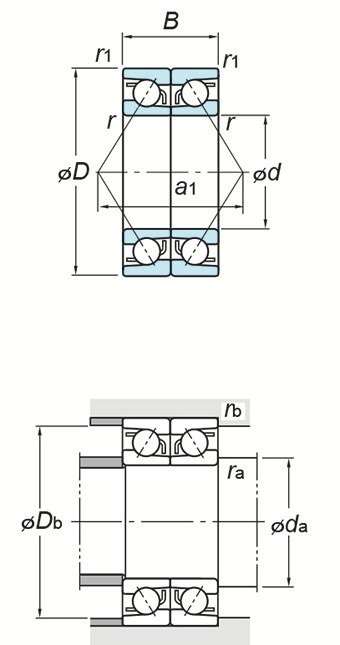

(Boundary dimensions ...etc)
d
65 mm
D
140 mm
B
66 mm
r(min.)
2.1 mm
r1(min.)
1.1 mm
Basic load ratings : Cr
207 kN
Basic load ratings : C0r
151 kN
Fatigue load limit : Cu
9.70 kN
factor : f0
-
Limiting speeds(Grease lub.)
2800 min-1
Limiting speeds(Oil lub.)
3600 min-1
Load center spread : a
119.4 mm
Mounting dimensions
da(min.)
77 mm
Db(max.)
133 mm
ra(max.)
2 mm
rb(max.)
1 mm
Refer.
(Refer.)Mass
4.44 kg
