MCGILL CCFH-1 3/4-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

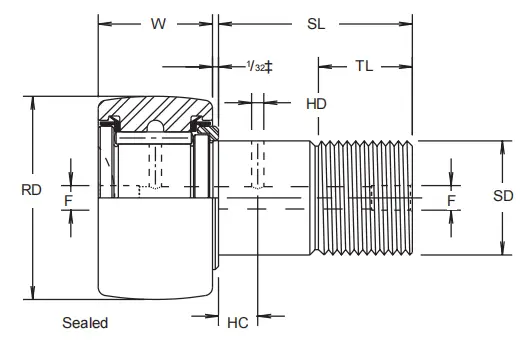

Description
ROLLER DIA.(RD)
1.750
ROLLER WIDTH (W)
1.000
STUD DIA. (SD)
1.000
STUD L'GTH.(SL)
1 3/4
MIN. THR'D L'GTH.(TL)
7/8
FINE THR'DS.
1-14
HOLE CENTER(HC)
7/16
HOLE DIA.(HD)
3/32
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
1 1/4
HOUSING BORE DIA.
1.0003
***RECOM. CLAMPING TORQUE LBS.-IN.
2250
MAX. STATIC CAPACITY LBS.
15840
BASIC DYN. RATING LBS.
6385
