MCGILL CCFH-2-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

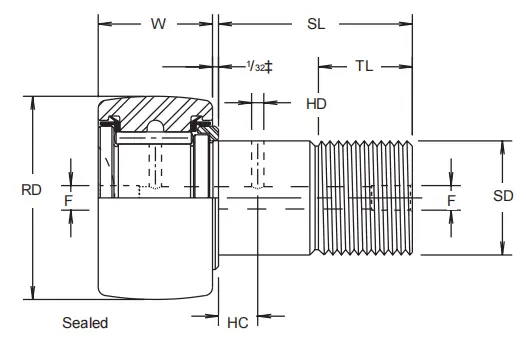

ROLLER DIA.(RD)
2.000
ROLLER WIDTH (W)
1.250
STUD DIA. (SD)
1.125
STUD L'GTH.(SL)
2
MIN. THR'D L'GTH.(TL)
1
FINE THR'DS.
1 1/8-12
HOLE CENTER(HC)
1/2
HOLE DIA.(HD)
1/8
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
1 13/32
HOUSING BORE DIA.
1.1253
***RECOM. CLAMPING TORQUE LBS.-IN.
2800
MAX. STATIC CAPACITY LBS.
21140
BASIC DYN. RATING LBS.
8090
