MCGILL CCFH-4-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

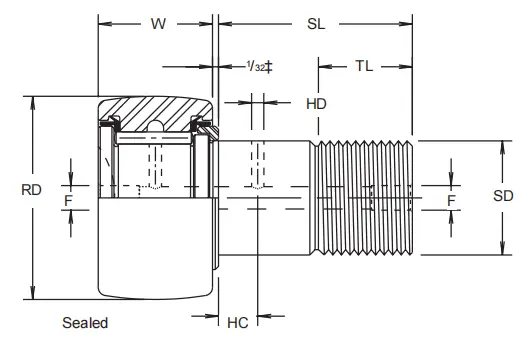

ROLLER DIA.(RD)
4.000
ROLLER WIDTH (W)
2.250
STUD DIA. (SD)
2.000
STUD L'GTH.(SL)
3 1/2
MIN. THR'D L'GTH.(TL)
1 1/2
FINE THR'DS.
2-12
HOLE CENTER(HC)
3/4
HOLE DIA.(HD)
1/8
LUB. FIT- TING SIZE (F)*
1/4
MIN. BOSS DIA.
2 51/64
HOUSING BORE DIA.
2.0003
***RECOM. CLAMPING TORQUE LBS.-IN.
5000
MAX. STATIC CAPACITY LBS.
89540
BASIC DYN. RATING LBS.
29985
