MCGILL CCFH-5-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

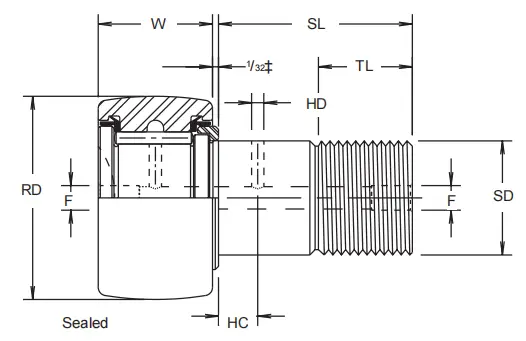

ROLLER DIA.(RD)
5.000
ROLLER WIDTH (W)
2.750
STUD DIA. (SD)
2.500
STUD L'GTH.(SL)
5 1/16
MIN. THR'D L'GTH.(TL)
2 9/16
FINE THR'DS.
2 1/2-12
HOLE CENTER(HC)
7/8
HOLE DIA.(HD)
3/16
LUB. FIT- TING SIZE (F)*
1/4 N.P.T.
MIN. BOSS DIA.
3 9/16
HOUSING BORE DIA.
2.5003
***RECOM. CLAMPING TORQUE LBS.-IN.
5000
MAX. STATIC CAPACITY LBS.
135900
BASIC DYN. RATING LBS.
46575
