MCGILL CCFH-7-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

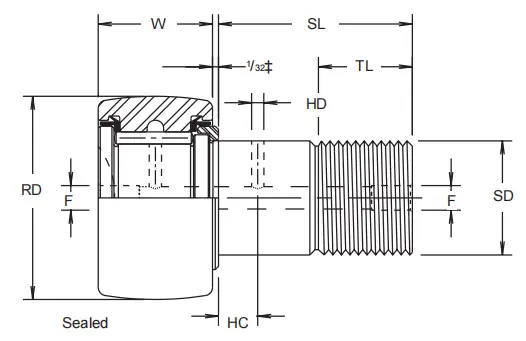

ROLLER DIA.(RD)
7.000
ROLLER WIDTH (W)
3.750
STUD DIA. (SD)
3.500
STUD L'GTH.(SL)
7 11/16
MIN. THR'D L'GTH.(TL)
4 1/8
FINE THR'DS.
3 1/2-4
HOLE CENTER(HC)
1 1/4
HOLE DIA.(HD)
3/16
LUB. FIT- TING SIZE (F)*
1/4 N.P.T.
MIN. BOSS DIA.
5 3/16
HOUSING BORE DIA.
3.5003
***RECOM. CLAMPING TORQUE LBS.-IN.
5000
MAX. STATIC CAPACITY LBS.
213860
BASIC DYN. RATING LBS.
75380
