MCGILL CCYR-4-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

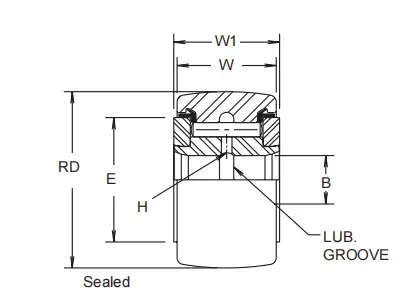

Description
ROLLER DIA.(RD)
4.000
ROLLER WIDTH (W)
2.250
BORE (B)NOM.
1.250
WIDTH OVER END PLATES (W1)
2.3125
DIA. OF END PLATES (E)
2 51/64
MIN. BOSS DIA.
2 9/32
SHAFT DIA. PUSH FIT
1.2494
SHAFT DIA. DRIVE FIT
1.2502
SHAFT DIA. PRESS FIT
1.2506
MAX. STATIC CAPACITY LBS.
89540
BASIC DYN. RATING LBS.
29985
