MCGILL CCYR-5-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

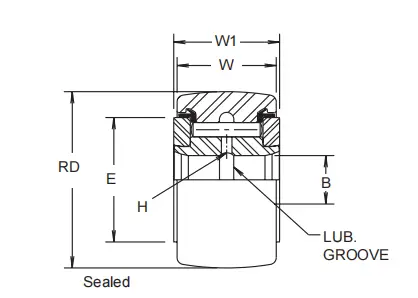

Description
ROLLER DIA.(RD)
5.000
ROLLER WIDTH (W)
2.750
BORE (B)NOM.
1.750
WIDTH OVER END PLATES (W1)
2.8750
DIA. OF END PLATES (E)
3 9/16
MIN. BOSS DIA.
2 7/8
SHAFT DIA. PUSH FIT
1.7494
SHAFT DIA. DRIVE FIT
1.7502
SHAFT DIA. PRESS FIT
1.7506
MAX. STATIC CAPACITY LBS.
135900
BASIC DYN. RATING LBS.
46575
