MCGILL CF-1 3/8
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

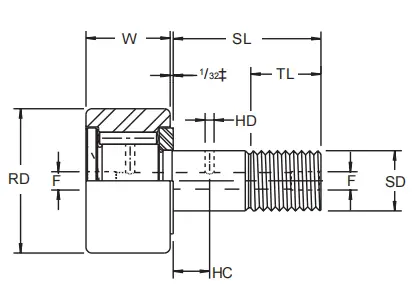

Description
ROLLER DIA.(RD)
1.375
ROLLER WIDTH (W)
.750
STUD DIA. (SD)
.500
STUD L'GTH.(SL)
1 1/4
MIN. THR'D L'GTH.(TL)
5/8
FINE THR'DS.
1/2-20
HOLE CENTER(HC)
5/16
HOLE DIA.(HD)
3/32
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
49/64
HOUSING BORE DIA.
.5003
***RECOM. CLAMPING TORQUE LBS.-IN.
350
MAX. STATIC CAPACITY LBS.
4250
BASIC DYN. RATING LBS.
3930
