MCGILL CF-3/4-B
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

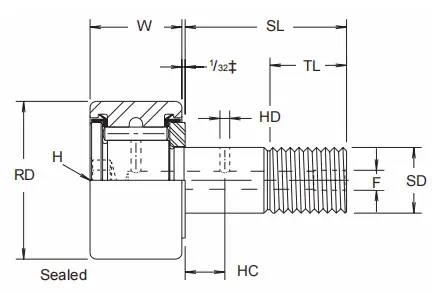

Description
ROLLER DIA.(RD)
.750
ROLLER WIDTH (W)
.500
STUD DIA. (SD)
.375
STUD L'GTH.(SL)
7/8
MIN. THR'D L'GTH.(TL)
3/8
FINE THR'DS.
3/8-24
HOLE CENTER(HC)
1/4
HOLE DIA.(HD)
3/32
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
1/2
HOUSING BORE DIA.
.3753
***RECOM. CLAMPING TORQUE LBS.-IN.
95
MAX. STATIC CAPACITY LBS.
2065
BASIC DYN. RATING LBS.
1660
