MCGILL CF-9/16
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

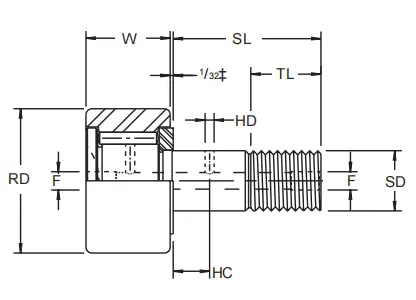

Description
ROLLER DIA.(RD)
.5625
ROLLER WIDTH (W)
.375
STUD DIA. (SD)
.190
STUD L'GTH.(SL)
5/8
MIN. THR'D L'GTH.(TL)
1/4
FINE THR'DS.
10-32
HOLE CENTER(HC)
-
HOLE DIA.(HD)
-
LUB. FIT- TING SIZE (F)*
1/8*
MIN. BOSS DIA.
19/64
HOUSING BORE DIA.
.1903
***RECOM. CLAMPING TORQUE LBS.-IN.
15
MAX. STATIC CAPACITY LBS.
790
BASIC DYN. RATING LBS.
680
