MCGILL CFH-3 1/2-SB
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

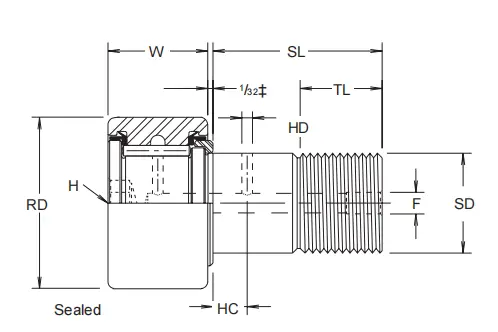

ROLLER DIA.(RD)
3.500
ROLLER WIDTH (W)
2.000
STUD DIA. (SD)
1.750
STUD L'GTH.(SL)
2 3/4
MIN. THR'D L'GTH.(TL)
1 3/8
FINE THR'DS.
1 3/4-12
HOLE CENTER(HC)
11/16
HOLE DIA.(HD)
1/8
LUB. FIT- TING SIZE (F)*
① 1/4
MIN. BOSS DIA.
2 7/16
HOUSING BORE DIA.
1.7503
***RECOM. CLAMPING TORQUE LBS.-IN.
3450
MAX. STATIC CAPACITY LBS.
63250
BASIC DYN. RATING LBS.
22800
