MCGILL CFH-11/16-SB
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

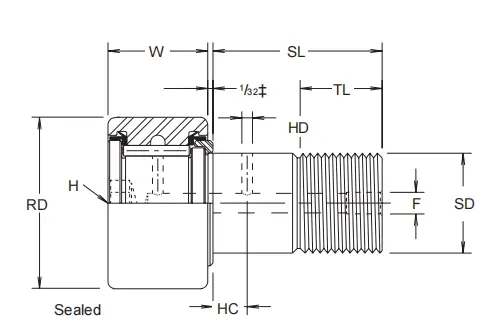

ROLLER DIA.(RD)
.6875
ROLLER WIDTH (W)
.4375
STUD DIA. (SD)
.3125
STUD L'GTH.(SL)
3/4
MIN. THR'D L'GTH.(TL)
5/16
FINE THR'DS.
5/16-24
HOLE CENTER(HC)
-
HOLE DIA.(HD)
-
LUB. FIT- TING SIZE (F)*
-
MIN. BOSS DIA.
15/32
HOUSING BORE DIA.
.3128
***RECOM. CLAMPING TORQUE LBS.-IN.
35
MAX. STATIC CAPACITY LBS.
2480
BASIC DYN. RATING LBS.
955
