MCGILL CFH-7/8-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

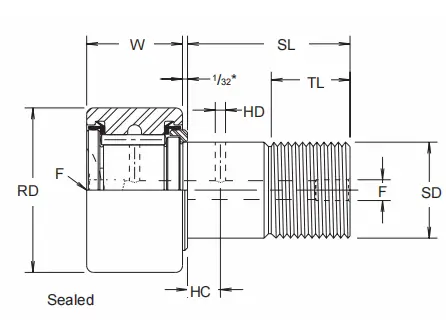

Description
ROLLER DIA.(RD)
.875
ROLLER WIDTH (W)
.500
STUD DIA. (SD)
.4375
STUD L'GTH.(SL)
7/8
MIN. THR'D L'GTH.(TL)
3/8
FINE THR'DS.
7/16-20
HOLE CENTER(HC)
1/4
HOLE DIA.(HD)
3/32
LUB. FIT- TING SIZE (F)*
3/16
MIN. BOSS DIA.
39/64
HOUSING BORE DIA.
.4378
***RECOM. CLAMPING TORQUE LBS.-IN.
250
MAX. STATIC CAPACITY LBS.
4130
BASIC DYN. RATING LBS.
1660
