MCGILL CYR-7-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

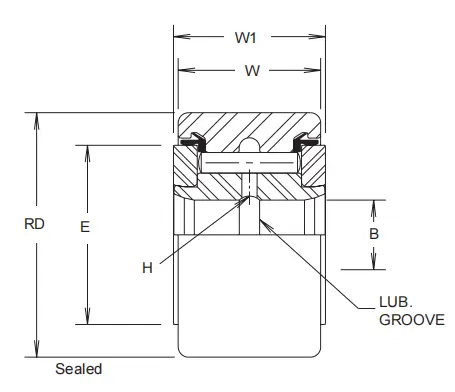

ROLLER DIA.(RD)
7.000
ROLLER WIDTH (W)
3.750
BORE (B)NOM.
2.750
WIDTH OVER END PLATES (W1)
3.8750
DIA. OF END PLATES (E)
5 3/16
MIN. BOSS DIA.
3 7/8
SHAFT DIA. PUSH FIT
2.7494
SHAFT DIA. DRIVE FIT
2.7502
SHAFT DIA. PRESS FIT
2.7506
MAX. STATIC CAPACITY LBS.
213860
BASIC DYN. RATING LBS.
75380
