MCGILL CYR-8-S
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

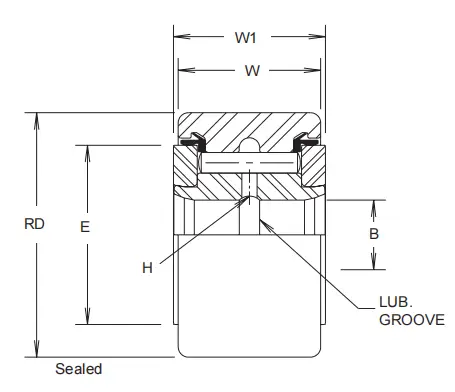

ROLLER DIA.(RD)
8.000
ROLLER WIDTH (W)
4.250
BORE (B)NOM.
3.255
WIDTH OVER END PLATES (W1)
4.500
DIA. OF END PLATES (E)
4 3/8
MIN. BOSS DIA.
4 3/8
SHAFT DIA. PUSH FIT
3.2545
SHAFT DIA. DRIVE FIT
3.2560
SHAFT DIA. PRESS FIT
3.2565
MAX. STATIC CAPACITY LBS.
288200
BASIC DYN. RATING LBS.
92200
