MCGILL FCF-1 1/2
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

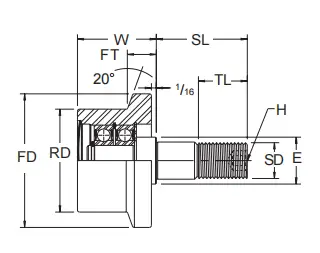

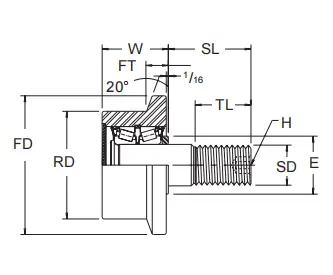

Description
ROLLER DIA. (RD)
1.500
FLANGE DIA. (FD)
2 3/16
WIDTH (W)
1 3/16
FLANGE THICKNESS (FT)
11/32
STUD DIA. (SD)
.625
MIN. THREAD LENGTH (TL)
3/4
FINE THREADS
5/8-18
STUD LENGTH (SL)
1 1/2
HEX SOCKET (H)
1/4
SHOULDER OR ENDPLATE DIA.(E)
3/4
RADIAL BASIC DYNAMIC RATING (LBS.)
2520
DYNAMIC THRUST LOAD* RATING (LBS.)
1320
MAX. STATIC CAPACITY (LBS.)
1370
