MCGILL FCF-3
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

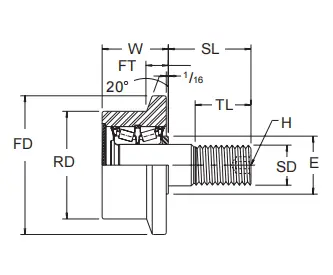

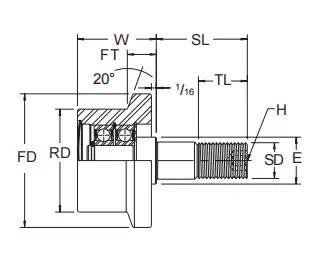

ROLLER DIA. (RD)
3.000
FLANGE DIA. (FD)
3 15/16
WIDTH (W)
2
FLANGE THICKNESS (FT)
19/32
STUD DIA. (SD)
1.250
MIN. THREAD LENGTH (TL)
1 3/4
FINE THREADS
1 1/4-12
STUD LENGTH (SL)
2 1/2
HEX SOCKET (H)
7/16
SHOULDER OR ENDPLATE DIA.(E)
1 3/4
RADIAL BASIC DYNAMIC RATING (LBS.)
14300
DYNAMIC THRUST LOAD* RATING (LBS.)
5790
MAX. STATIC CAPACITY (LBS.)
16000
