MCGILL GR-22
(BRAND)：MCGILL
(Availability)：In Stock
Description

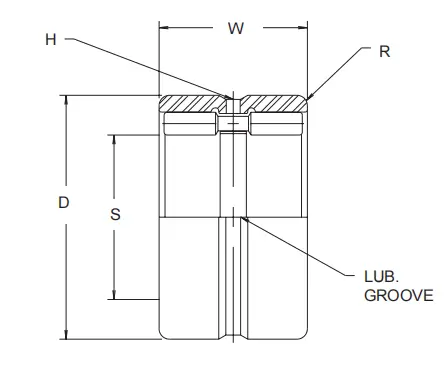

S SHAFT DIA.
1.375
D*
1.875
W
1.25
H
3/32
R MAX. FILLET FOR HOUSING
0.04
HSG. BORE DIA. ROTATING HOUSING
1.8747
HSG. BORE DIA. STATIONARY HOUSING
1.8757
STATIC LOAD RATING (LBS.)
25500
BASIC DYNAMIC RATING (LBS.)
9050
