MCGILL GR-104
(BRAND)：MCGILL
(Availability)：In Stock
Description

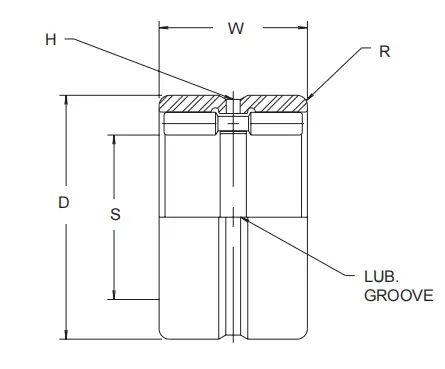

S SHAFT DIA.
6.5
D*
8
W
3
H
1/4
R MAX. FILLET FOR HOUSING
0.12
HSG. BORE DIA. ROTATING HOUSING
7.9998
HSG. BORE DIA. STATIONARY HOUSING
8.0011
STATIC LOAD RATING (LBS.)
308000
BASIC DYNAMIC RATING (LBS.)
75000
