MCGILL MCFD-47
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

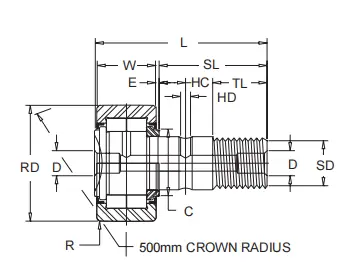

Description
ROLLER DIA.(RD) NOM. mm
47
ROLLER WIDTH W mm
24
STUD DIA. SD mm
20
STUD L'GTH. SL mm
40.5
OVERALL LENGTH L mm
66
ENDPLATE EXTENSION E mm
0.8
THREAD mm
M20x1.5
THREAD LENGTH TL MIN.
21
OIL HOLE HC NOM.
9
OIL HOLE HD NOM.
4
REAMED HOLE D NOM.
8
CORNER RADIUS R MIN.
1.0
ENDPLATE DIA. C
27
CLAMPING TORQUE MAX.
118
BRG. MASS (APPROX.) Kg
.380
