MCGILL MCFD-90
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

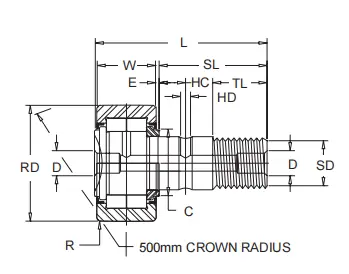

ROLLER DIA.(RD) NOM. mm
90
ROLLER WIDTH W mm
35
STUD DIA. SD mm
30
STUD L'GTH. SL mm
63.0
OVERALL LENGTH L mm
100
ENDPLATE EXTENSION E mm
1.0
THREAD mm
M30x1.5
THREAD LENGTH TL MIN.
32
OIL HOLE HC NOM.
15
OIL HOLE HD NOM.
4
REAMED HOLE D NOM.
8
CORNER RADIUS R MIN.
1.1
ENDPLATE DIA. C
47
CLAMPING TORQUE MAX.
441
BRG. MASS (APPROX.) Kg
1.960
