MCGILL MR-30-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

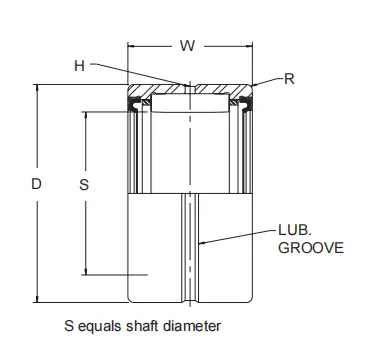

S SHAFT DIA.
1.8750
D
2.4375
W
1.250
H HOLE DIA.
3/32
R MAX. FILLET FOR HOUSING
.060
HSG. BORE DIA. ROTATING HOUSING
2.4371
HSG. BORE DIA. STATIONARY HOUSING
2.4382
STATIC LOAD RATING (LBS.)
19000
19000
11400
