MCGILL MR-48-SS
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

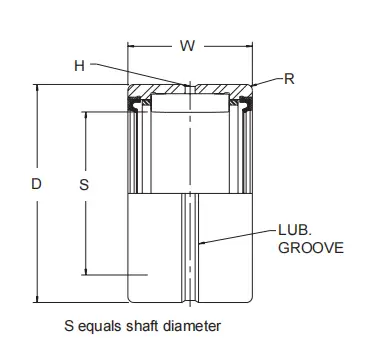

S SHAFT DIA.
3.0000
D
3.7500
W
1.750
H HOLE DIA.
1/8
R MAX. FILLET FOR HOUSING
.080
HSG. BORE DIA. ROTATING HOUSING
3.7495
HSG. BORE DIA. STATIONARY HOUSING
3.7508
STATIC LOAD RATING (LBS.)
46700
52300
26100
