MCGILL PCF-1 3/4
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

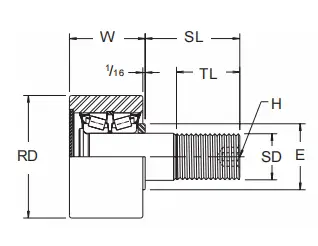

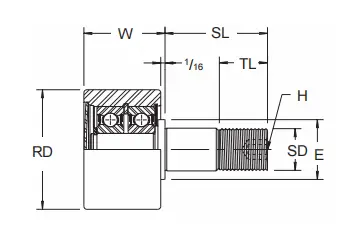

ROLLER DIA. (RD)
1.750
WIDTH (W)
1 3/16
STUD DIA. (SD)
.750
MIN. THREAD LENGTH (TL)
7/8
FINE THREADS
3/4-16
STUD LENGTH (SL)
1 3/4
HEX SOCKET (H)
1/4
SHOULDER OR ENDPLATE DIA. (E)
1
RADIAL BASIC DYNAMIC RATING (LBS.)
2520
DYNAMIC THRUST LOAD* RATING (LBS.)
1320
MAX. STATIC CAPACITY (LBS.)
1370
