MCGILL PCF-2 1/4
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

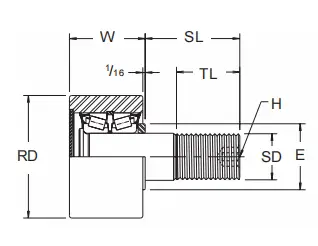

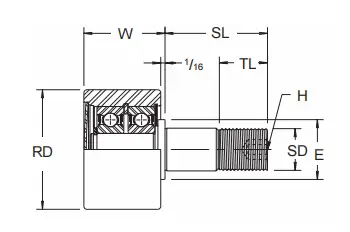

ROLLER DIA. (RD)
2.250
WIDTH (W)
1 11/16
STUD DIA. (SD)
.875
MIN. THREAD LENGTH (TL)
1 1/8
FINE THREADS
7/8-14
STUD LENGTH (SL)
2
HEX SOCKET (H)
3/8
SHOULDER OR ENDPLATE DIA. (E)
1
RADIAL BASIC DYNAMIC RATING (LBS.)
3490
DYNAMIC THRUST LOAD* RATING (LBS.)
1830
MAX. STATIC CAPACITY (LBS.)
2000
