MCGILL SB-22212
BEARING
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description
BORE A MM
60
BORE A INCH
2.3622
OUTSIDE DIAMETER B MM
110
OUTSIDE DIAMETER INCH
4.3307
WIDTH C MM
28
WIDTH C INCH
1.1024

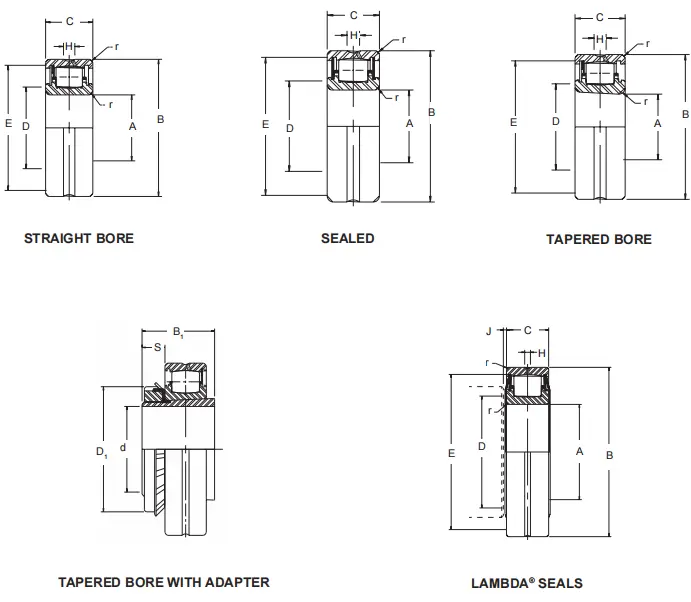

SHOULDER DIMENSIONS r (1)
.059
SHOULDER DIMENSIONS D
2 3/4
SHOULDER DIMENSIONS E
3 7/8
SHOULDER DIMENSIONS H (2)
11/64
SHOULDER DIMENSIONS J MIN.
3/32
LIM. SPEED (3) RPM
4200
ABMA BASIC DYNAMIC RATING POUNDS
29200
ADAPTER NUMBER (4)
-
ADAPTER DIMENSIONS SHAFT DIAM.
-
ADAPTER DIMENSIONS B1
-
ADAPTER DIMENSIONS S
-
ADAPTER DIMENSIONS D1
-
BRG. WT. LBS.
2.60
