MCGILL SB-22316
BEARING
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description
BORE A MM
80
BORE A INCH
3.1496
OUTSIDE DIAMETER B MM
170
OUTSIDE DIAMETER INCH
6.6929
WIDTH C MM
58
WIDTH C INCH
2.2835

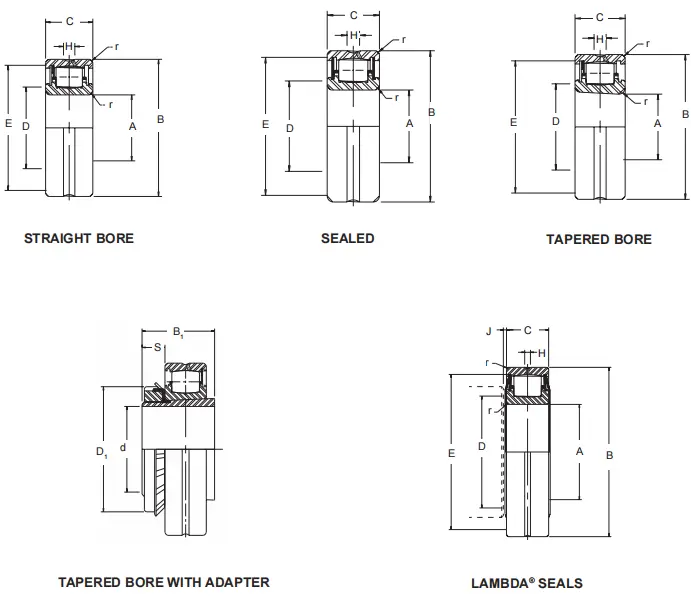

SHOULDER DIMENSIONS r (1)
.079
SHOULDER DIMENSIONS D
3 5/8
SHOULDER DIMENSIONS E
6 1/16
SHOULDER DIMENSIONS H (2)
21/64
SHOULDER DIMENSIONS J MIN.
1/8
LIM. SPEED (3) RPM
2650
ABMA BASIC DYNAMIC RATING POUNDS
77500
ADAPTER NUMBER (4)
SNW 116
ADAPTER DIMENSIONS SHAFT DIAM.
2 11/16
ADAPTER DIMENSIONS B1
3 13/64
ADAPTER DIMENSIONS S
43/64
ADAPTER DIMENSIONS D1
4 5/32
BRG. WT. LBS.
13.9
