MCGILL SB-22317
BEARING
(BRAND)：MCGILL
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Description

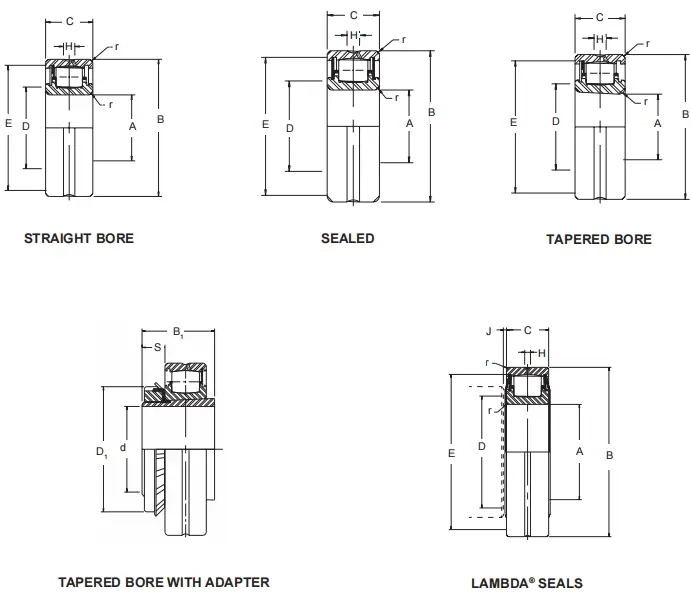

BORE A MM
85
BORE A INCH
3.3465
OUTSIDE DIAMETER B MM
180
OUTSIDE DIAMETER INCH
7.0866
WIDTH C MM
60
WIDTH C INCH
2.3622
SHOULDER DIMENSIONS r (1)
.098
SHOULDER DIMENSIONS D
3 7/8
SHOULDER DIMENSIONS E
6 7/16
SHOULDER DIMENSIONS H (2)
21/64
SHOULDER DIMENSIONS J MIN.
1/8
LIM. SPEED (3) RPM
2500
ABMA BASIC DYNAMIC RATING POUNDS
95100
ADAPTER NUMBER (4)
SNW 117
ADAPTER DIMENSIONS SHAFT DIAM.
2 15/16
ADAPTER DIMENSIONS B1
3 5/16
ADAPTER DIMENSIONS S
45/64
ADAPTER DIMENSIONS D1
4 13/32
BRG. WT. LBS.
16.2
