NSK 130TAC20F
Angular Contact Thrust Ball Bearings (NSKTAC F Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
130TAC20F
Boundary Dimensions
d
130
mm
Bore diameter
D
200
mm
Outside diameter
T
84
mm
Inner Ring Width
C
42
mm
Outer Ring Width
r(min.)
2
mm
Chamfer Dimension
r1(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Ca
125
kN
Basic Dynamic Load Rating
C0a
395
kN
Basic Static Load Rating
Speeds
Grease
2700
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
3000
min-1
Limiting Speed (EL-Preload)
Grease
2300
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
2600
min-1
Limiting Speed (L-Preload)
Dimensions
50°
Contact Angle

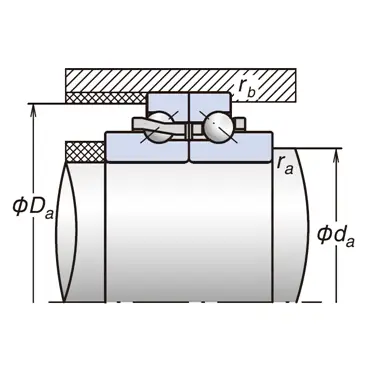

Abutment and Fillet Dimensions
ra(max.)
2
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
da
160
mm
Diameter of Shaft Abutment
Da
187
mm
Diameter of Housing Abutment
