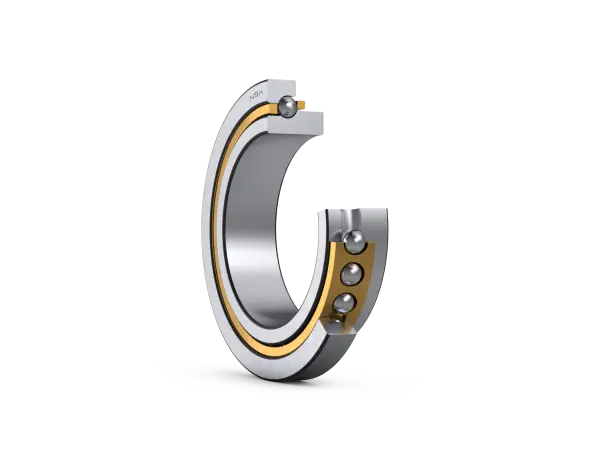

NSK 65TAC20F
Angular Contact Thrust Ball Bearings (NSKTAC F Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
65TAC20F
Boundary Dimensions
d
65
mm
Bore diameter
D
100
mm
Outside diameter
T
44
mm
Inner Ring Width
C
22
mm
Outer Ring Width
r(min.)
1.1
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
33.5
kN
Basic Dynamic Load Rating
C0a
96.0
kN
Basic Static Load Rating
Speeds
Grease
5500
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
6100
min-1
Limiting Speed (EL-Preload)
Grease
4700
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
5200
min-1
Limiting Speed (L-Preload)
Dimensions
50°
Contact Angle
Abutment and Fillet Dimensions
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
rb(max.)
0.6
mm
Radius of Shaft or Housing Fillet
da
79
mm
Diameter of Shaft Abutment
Da
94
mm
Diameter of Housing Abutment
