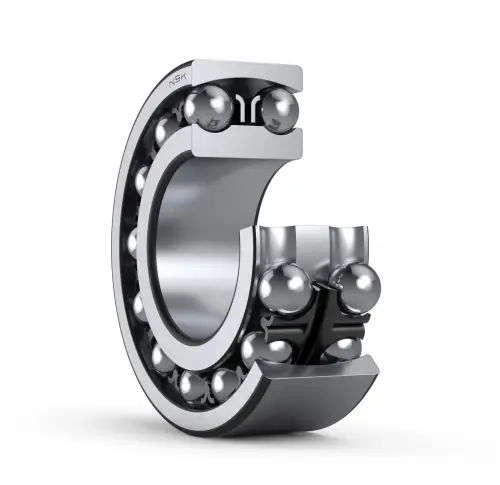

NSK 1320
Self-Aligning Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
1320

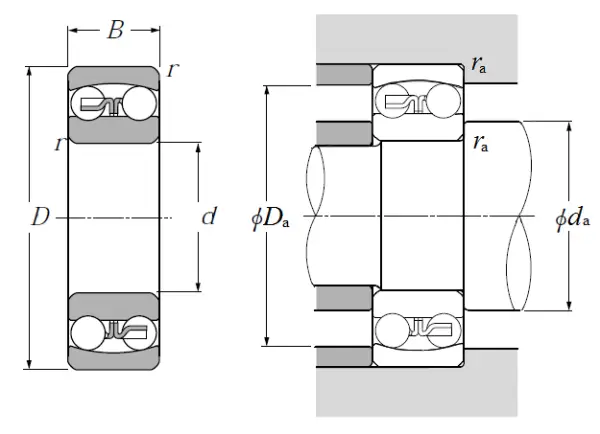

Boundary Dimensions
d
100
mm
Bore diameter
D
215
mm
Outside diameter
B
47
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
155000
N
Basic dynamic load rating
C0r
57500
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3400
min-1
Oil-bath lubrication
da (min.)
113
mm
Diameter of shaft abutment
Da (max.)
202
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.24
Constant
Y2
4.1
Axial load Factors
Y3
2.7
Axial load Factors
Y0
2.8
Axial load Factors
