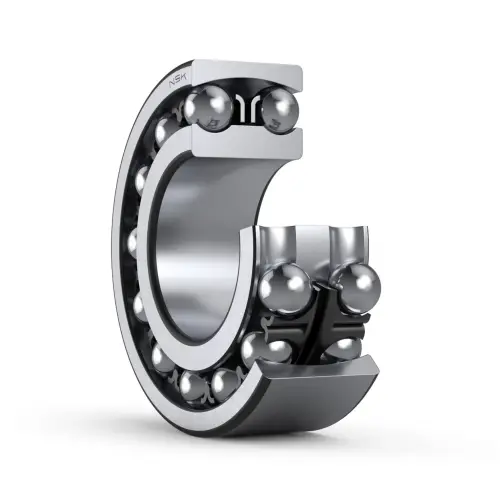

NSK 2219
Self-Aligning Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
2219
Boundary Dimensions
d
95
mm
Bore diameter
D
170
mm
Outside diameter
B
43
mm
Width
r (min.)
2.1
mm
Chamfer dimension
Basic Load Ratings
Cr
92000
N
Basic dynamic load rating
C0r
34500
N
Basic static load rating
Speeds
Grease
3400
min-1
Grease lubrication
Oil (Oil-bath)
4000
min-1
Oil-bath lubrication
da (min.)
106
mm
Diameter of shaft abutment
Da (max.)
159
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.27
Constant
Y2
3.7
Axial load Factors
Y3
2.4
Axial load Factors
Y0
2.5
Axial load Factors
