NSK 2318K

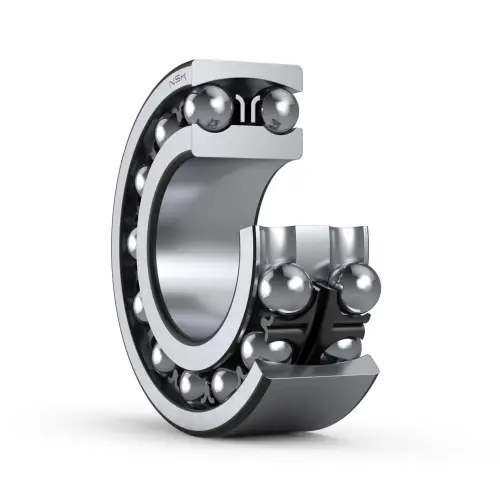

Self-Aligning Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
2318K

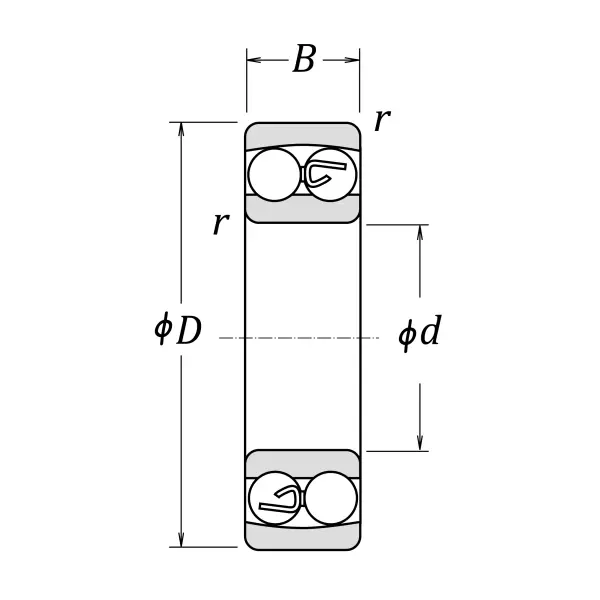

Boundary Dimensions
d
90
mm
Bore diameter
D
190
mm
Outside diameter
B
64
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
170000
N
Basic dynamic load rating
C0r
57500
N
Basic static load rating
Speeds
Grease
2800
min-1
Grease lubrication
Oil (Oil-bath)
3600
min-1
Oil-bath lubrication
da (min.)
103
mm
Diameter of shaft abutment
Da (max.)
177
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet

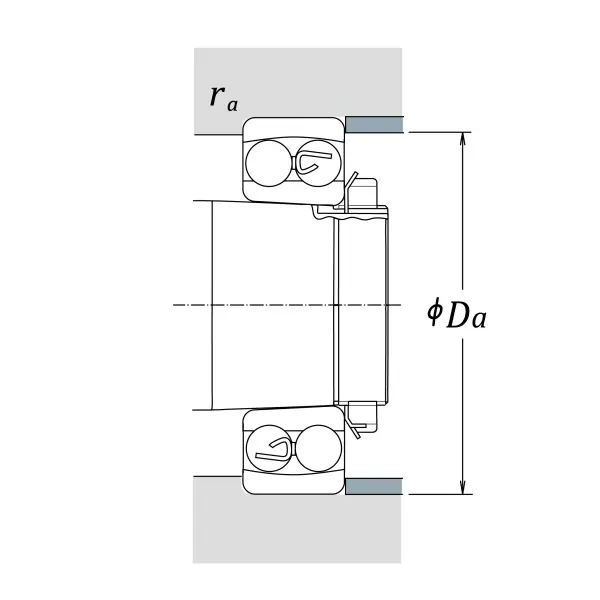

Abutment and Fillet Dimensions
e
0.38
Constant
Y2
2.6
Axial load Factors
Y3
1.7
Axial load Factors
Y0
1.7
Axial load Factors
