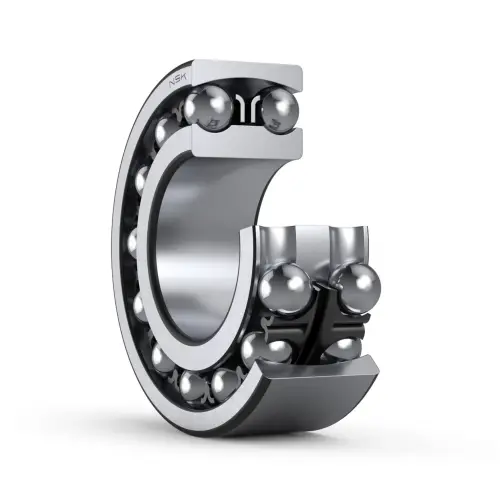

NSK 2320
Self-Aligning Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
2320

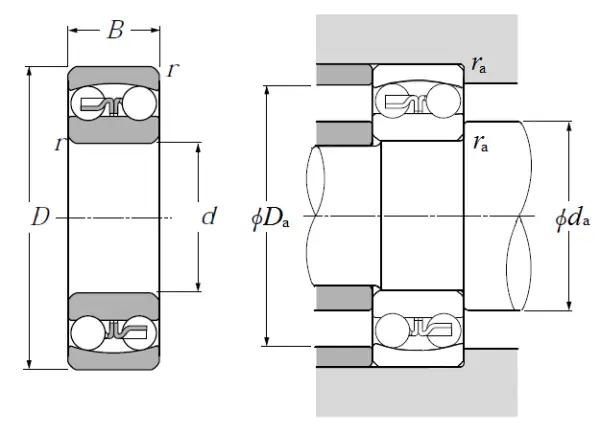

Boundary Dimensions
d
100
mm
Bore diameter
D
215
mm
Outside diameter
B
73
mm
Width
r (min.)
3
mm
Chamfer dimension
Basic Load Ratings
Cr
206000
N
Basic dynamic load rating
C0r
79000
N
Basic static load rating
Speeds
Grease
2400
min-1
Grease lubrication
Oil (Oil-bath)
3200
min-1
Oil-bath lubrication
da (min.)
113
mm
Diameter of shaft abutment
Da (max.)
202
mm
Diameter of housing abutment
ra (max.)
2.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
e
0.38
Constant
Y2
2.6
Axial load Factors
Y3
1.7
Axial load Factors
Y0
1.8
Axial load Factors
