NSK 240BTR10S

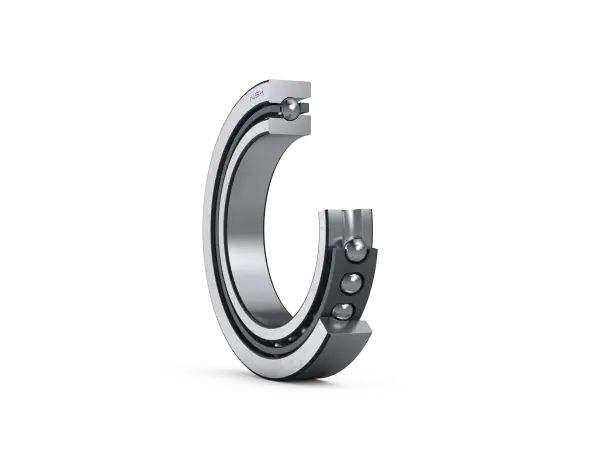

High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
240BTR10S

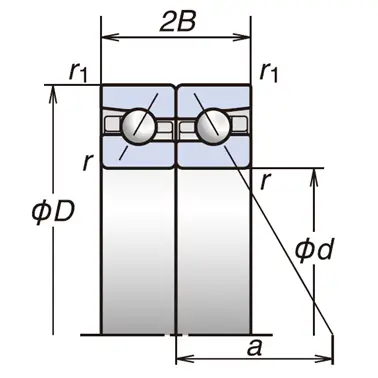

Boundary Dimensions
BTR: 40°
Bearing Type
d
240
mm
Bore diameter
D
360
mm
Outside diameter
2B
108
mm
Assembled Width
r(min.)
3
mm
Chamfer Dimension
r1(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Ca
231
kN
Basic Dynamic Load Rating
C0a
620
kN
Basic Static Load Rating
Speeds
Grease
1900
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
2500
min-1
Limiting Speed (EL-Preload)
Grease
1700
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
2200
min-1
Limiting Speed (L-Preload)
Dimensions
40°
Contact Angle
a
152.9
mm
Effective Load Center

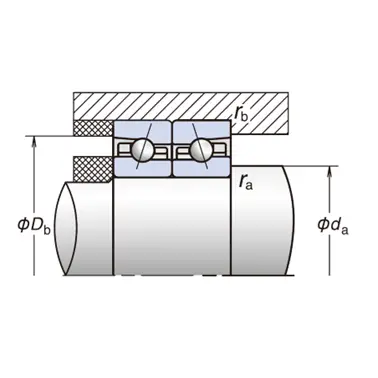

Abutment and Fillet Dimensions
da(min.)
254
mm
Diameter of Shaft Abutment
Db(max.)
353
mm
Diameter of Housing Abutment
ra(max.)
2.5
mm
Radius of Shaft or Housing Fillet
rb(max.)
1
mm
Radius of Shaft or Housing Fillet
