NSK 360BTR10S

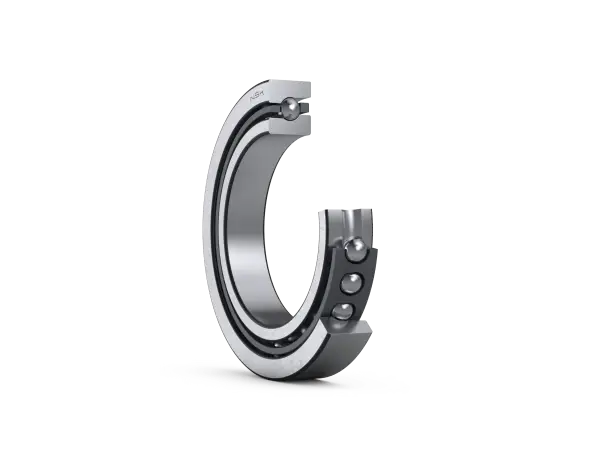

High-Speed Angular Contact Thrust Ball Bearings (NSK ROBUST Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
360BTR10S

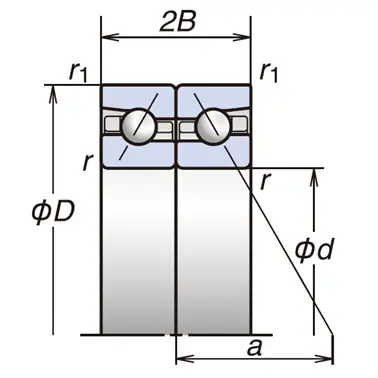

Boundary Dimensions
BTR: 40°
Bearing Type
d
360
mm
Bore diameter
D
540
mm
Outside diameter
2B
159
mm
Assembled Width
r(min.)
5
mm
Chamfer Dimension
r1(min.)
2
mm
Chamfer Dimension
Basic Load Ratings
Ca
425
kN
Basic Dynamic Load Rating
C0a
1500
kN
Basic Static Load Rating
Speeds
Grease
1300
min-1
Limiting Speed (EL-Preload)
Oil (Oil-air)
1700
min-1
Limiting Speed (EL-Preload)
Grease
1200
min-1
Limiting Speed (L-Preload)
Oil (Oil-air)
1500
min-1
Limiting Speed (L-Preload)
Dimensions
40°
Contact Angle
a
228.5
mm
Effective Load Center
Abutment and Fillet Dimensions
da(min.)
382
mm
Diameter of Shaft Abutment
Db(max.)
530
mm
Diameter of Housing Abutment
ra(max.)
4
mm
Radius of Shaft or Housing Fillet
rb(max.)
2
mm
Radius of Shaft or Housing Fillet
