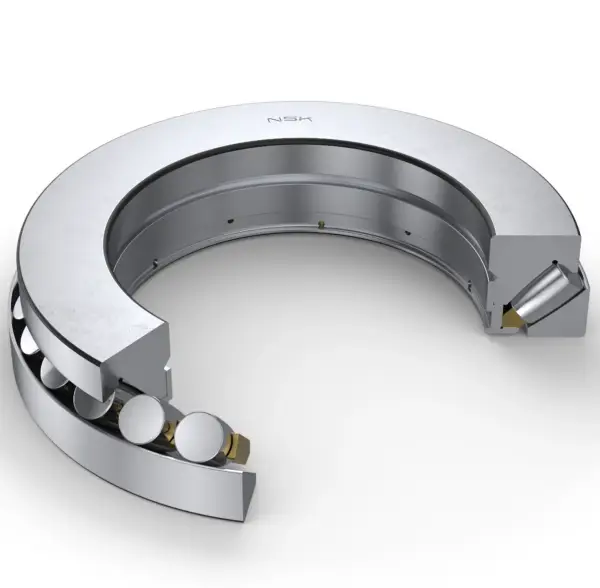

NSK 29480
Thrust Spherical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
29480
Boundary Dimensions
d
400
mm
Bore diameter
D
710
mm
Outside diameter
T,T3
185
mm
Height
r (min.)
7.5
mm
Chamfer dimension
Basic Load Ratings
Ca
5400000
N
Basic dynamic load rating
C0a
22100000
N
Basic static load rating
Speeds
Oil (Oil-bath)
450
min-1
Oil-bath lubrication
B2
178
mm
Height shaft washer + cage
d1
680
mm
Outside diameter of shaft washer end side face
B1
67
mm
Width shaft washer or length of shaft washer bore diameter that fits on shaft
C
89
mm
Height housing washer
A
236
mm
Distance from shaft washer end side face to pressure point
D1
536
mm
Shoulder diameter outer ring

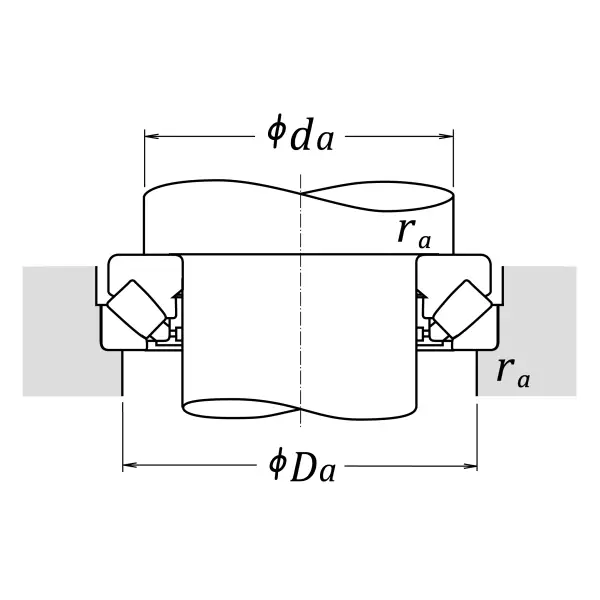

Dimensions
Da (max.)
610
mm
Diameter of housing abutment
ra (max.)
6
mm
Radius of shaft or housing fillet
da (min.)
540
mm
Abutment diameter spacer ring (E design)
