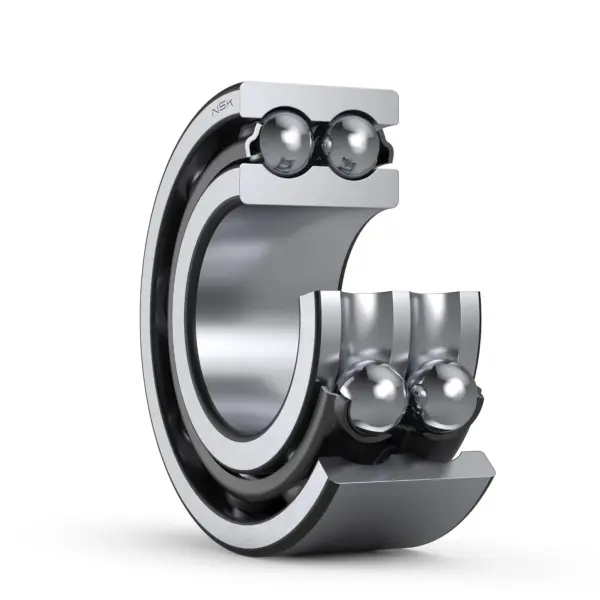

NSK 5201
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5201
Boundary Dimensions
d
12
mm
Bore diameter
D
32
mm
Outside diameter
B
15.9
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
11600
N
Basic dynamic load rating
C0r
5800
N
Basic static load rating
Speeds
Grease
15000
min-1
Grease lubrication
Oil (Oil-bath)
20000
min-1
Oil-bath lubrication
a0
16.7
mm
Load center spacings

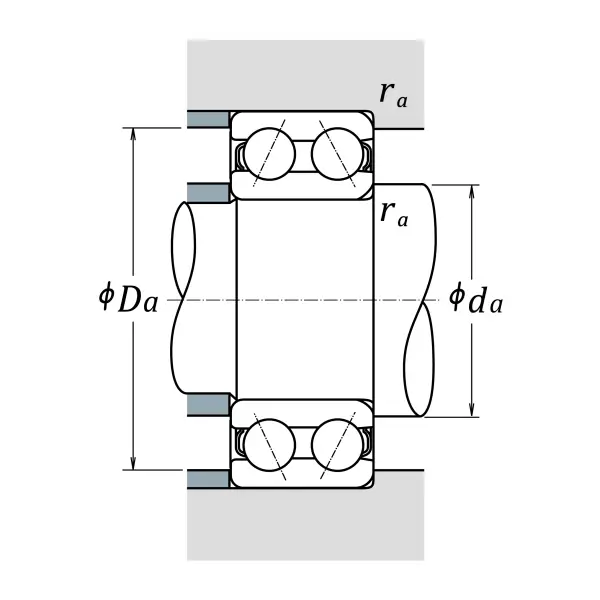

Dimensions
da (min.)
17
mm
Diameter of shaft abutment
Da (max.)
27
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
