NSK 5203
Double-Row Angular Contact Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
5203
Boundary Dimensions
d
17
mm
Bore diameter
D
40
mm
Outside diameter
B
17.5
mm
Width
r (min.)
0.6
mm
Chamfer dimension
Basic Load Ratings
Cr
16100
N
Basic dynamic load rating
C0r
9050
N
Basic static load rating
Speeds
Grease
11000
min-1
Grease lubrication
Oil (Oil-bath)
15000
min-1
Oil-bath lubrication
a0
20.8
mm
Load center spacings

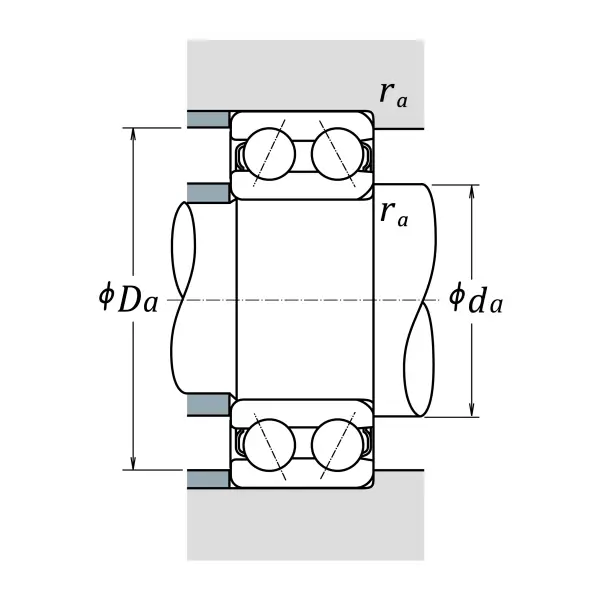

Dimensions
da (min.)
22
mm
Diameter of shaft abutment
Da (max.)
35
mm
Diameter of housing abutment
ra (max.)
0.6
mm
Radius of shaft or housing fillet
