NSK 6000

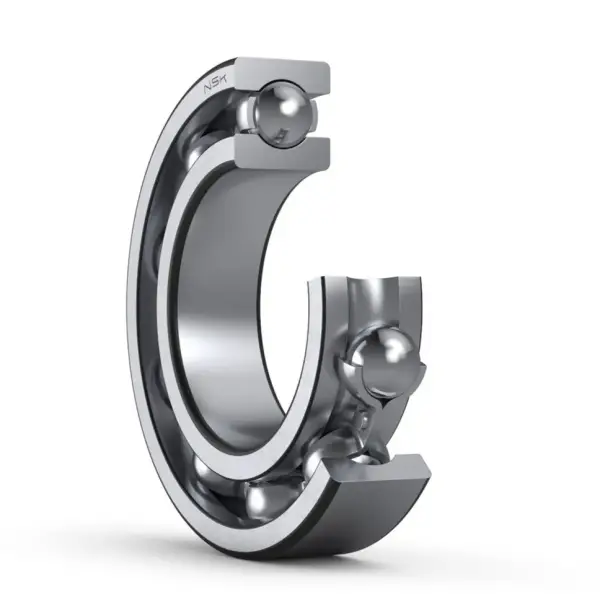

Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
6000

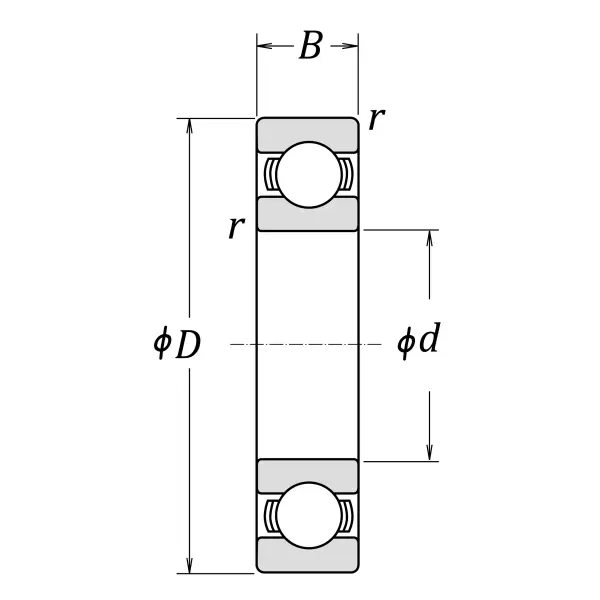

Boundary Dimensions
d
10
mm
Bore diameter
D
26
mm
Outside diameter
B
8
mm
Width
r (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
5050
N
Basic dynamic load rating
C0r
1970
N
Basic static load rating
Speeds
Grease
30000
min-1
Grease lubrication
Oil (Oil-bath)
36000
min-1
Oil-bath lubrication

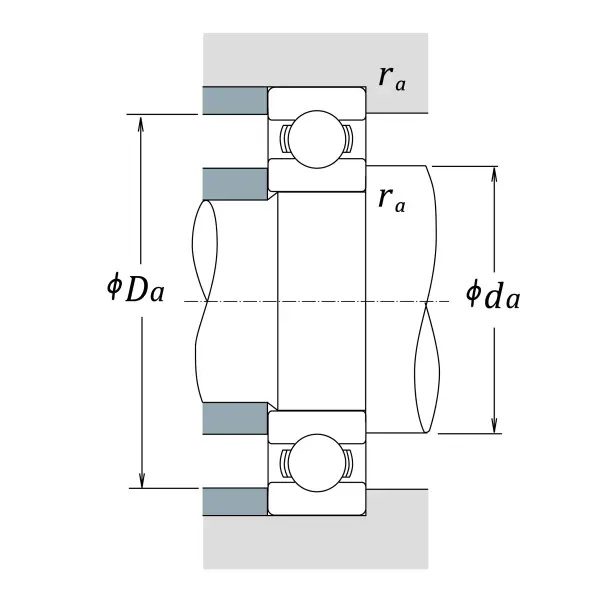

da (min.)
12
mm
Diameter of shaft abutment
da (max.)
13
mm
Diameter of shaft abutment
Da (max.)
24
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
12.4
Factor
