NSK 6012ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6012ZZ

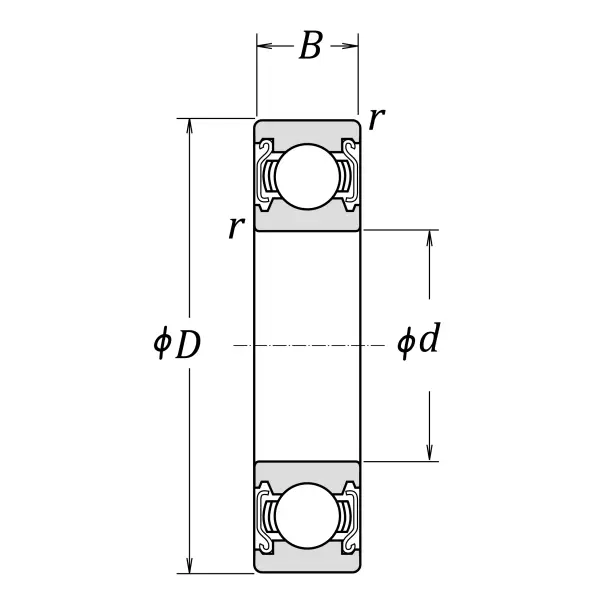

Boundary Dimensions
d
60
mm
Bore diameter
D
95
mm
Outside diameter
B
18
mm
Width
r (min.)
1.1
mm
Chamfer dimension
Basic Load Ratings
Cr
32500
N
Basic dynamic load rating
C0r
23200
N
Basic static load rating
Speeds
Grease
8000
min-1
Grease lubrication
da (min.)
66.5
mm
Diameter of shaft abutment
da (max.)
69
mm
Diameter of shaft abutment
Da (max.)
88.5
mm
Diameter of housing abutment
ra (max.)
1
mm
Radius of shaft or housing fillet

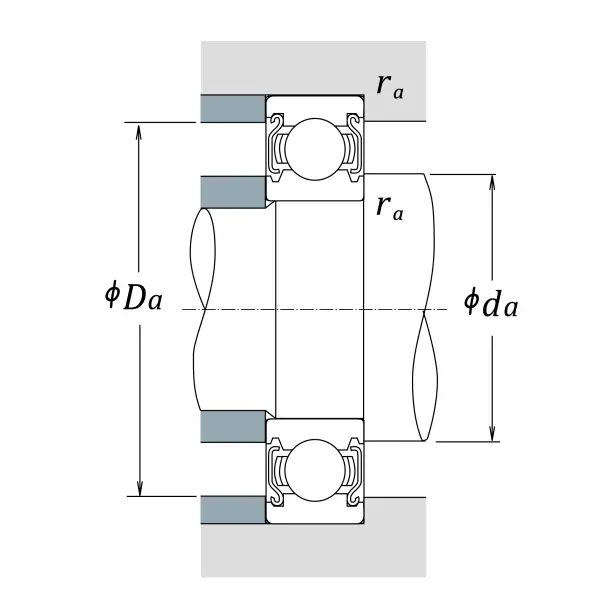

Abutment and Fillet Dimensions
fo
15.6
Factor
