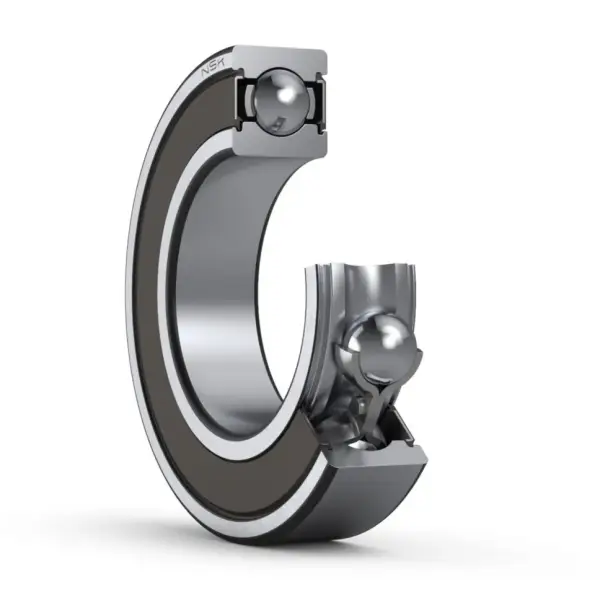

NSK 6020VV
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6020VV

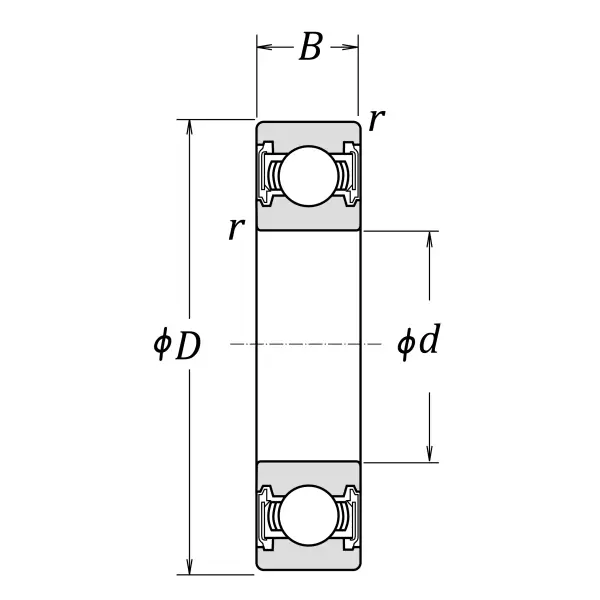

Boundary Dimensions
d
100
mm
Bore diameter
D
150
mm
Outside diameter
B
24
mm
Width
r (min.)
1.5
mm
Chamfer dimension
Basic Load Ratings
Cr
66000
N
Basic dynamic load rating
C0r
54000
N
Basic static load rating
Speeds
Grease
5000
min-1
Grease lubrication

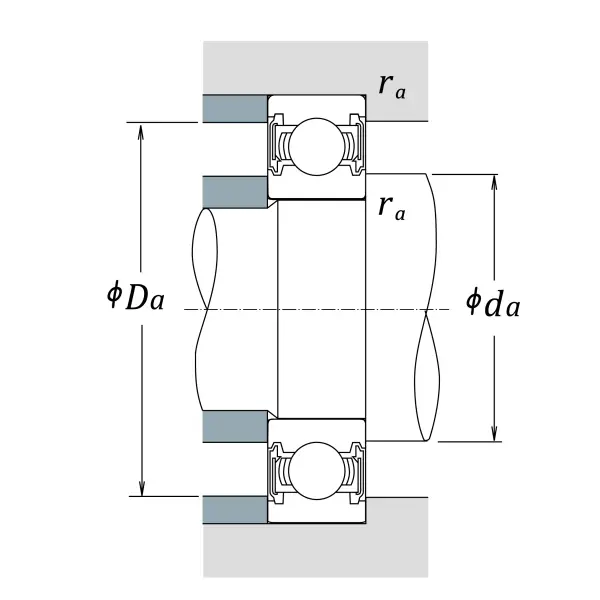

da (min.)
108
mm
Diameter of shaft abutment
da (max.)
112.5
mm
Diameter of shaft abutment
Da (max.)
142
mm
Diameter of housing abutment
ra (max.)
1.5
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.9
Factor
