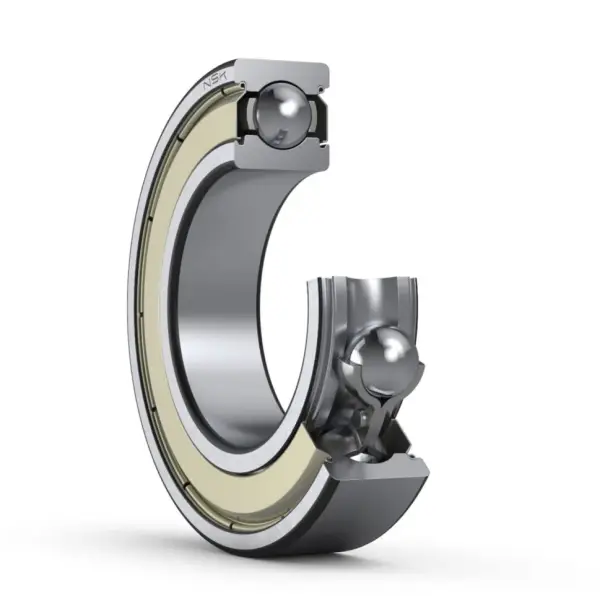

NSK 6021ZZ
Single-Row Deep Groove Ball Bearings
(BRAND)：NSK
(Availability)：In Stock
Designations
6021ZZ

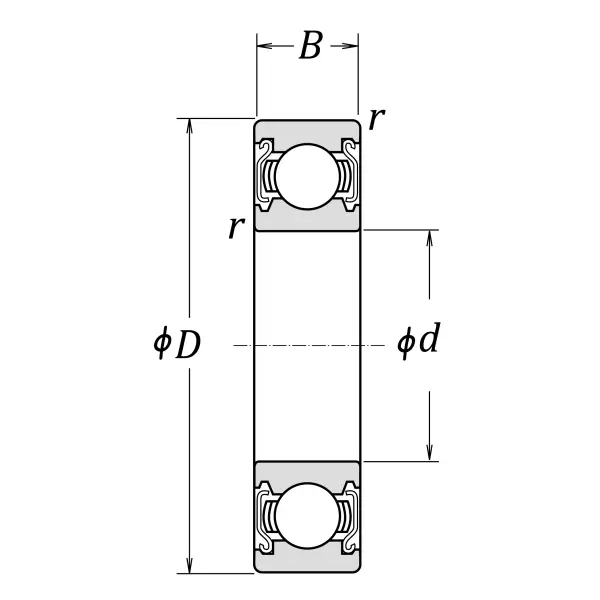

Boundary Dimensions
d
105
mm
Bore diameter
D
160
mm
Outside diameter
B
26
mm
Width
r (min.)
2
mm
Chamfer dimension
Basic Load Ratings
Cr
79500
N
Basic dynamic load rating
C0r
66000
N
Basic static load rating
Speeds
Grease
4500
min-1
Grease lubrication

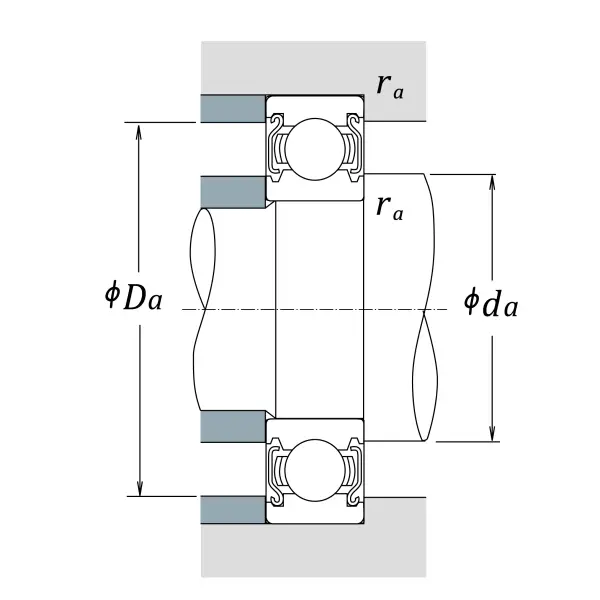

da (min.)
114
mm
Diameter of shaft abutment
da (max.)
120
mm
Diameter of shaft abutment
Da (max.)
151
mm
Diameter of housing abutment
ra (max.)
2
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
fo
15.8
Factor
